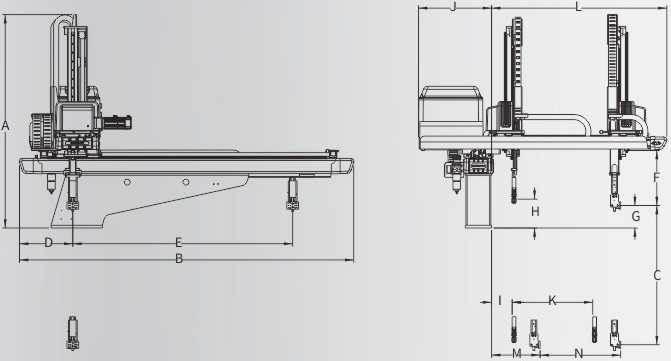

尺寸图表

/五轴伺服机械手

Three/five-axis servo manipulator

产品特点 Product Features

BRTR09WDS5P0系列适用于160T-360T的各种卧式射出成型机的成 品及水口取出,手臂形式双截式,分单臂和双臂,三轴及五轴AC伺服 驱动,可以应用于快速取出或模内贴,模内镶件等特殊产品应用,定 位精准,速度快,寿命长,故障低,安装机械手可増加产能(10- 30%)降低产品的不良率,保障操作人员的安全性,减少人工,精准控 制生产量,减少浪费,保证交期O

/五驱控一体控制系统:信号线少,远距离通讯,扩展性能好,抗 干扰能力强,重复定位精度高,可以同时控制多轴,设备维护简单, 故障率少。

BRTR09WDS5P0 is applicable to all types of horizontal injection machine ranges of 160T-360T for take-out products and sprues. Vertical arm is telescopic stage with product arm and runner arm. Full AC servo motor driven on each axis and applicable to take-out products with short forming cycle or complex automatic. Also with the function of mold labelingand mold inserting.

Three-axis/five-axis driver and controller integrated system : Less connecting line, long distance communication, good expansion performance strong anti-interference ability, high repeat precision, can simultaneously control multiple axis, simple equipment maintenance, low failure rate.

扫二维码用手机看

主要规格 Main Specification





机型哀示:W:双蔵式D:双胃机械手(l«品曾+料头常)S5:JfiAC伺服马达驱动(1«品上下、引拔+横行)

Denote: W:Telescopic type. D:Product arm + runner arm. S5:Fh/e-axis driven by AC Servo Motor.

上述取物时间,循环时间为我司内部测试标准溜试堵果,在机器实际应用过程中会因实际使用行程,负载,调试参数不同而有所变化。

The above-mentioned cycle time are the results of our internal test standard. In the actual application process of the machine, they will vary according to the actual operation, loading and debugging parameters.

因改良等原因,规格及外观有所変更时,不再另行通知,敬请谅解。

Without further notice if specification and exterior have been changed because of improvementlhanks for your understanding.
